Create or Edit Requisition Workflows
Before creating workflows, it will help to write an outline of your agency’s approval process, identifying where a requisition begins, who makes the first approval, the second, etc., and the final approval. If you have different approval processes for different types of requisitions, you should outline them as well.
A workflow is the path for routing a requisition line item for approval. You can create as many workflows as necessary, each with as many approval levels and as many approvers as needed.
Workflows can contain a hierarchy of approval levels, so if you need requisitions to move from one approval to the next, and then to a final approval level, you would use a workflow to create that process.
A requisition can be made up of several line items and each individual item can be assigned to a different workflow, based on however an agency decides, e.g., by the commodity or the amount, etc.
Approvers must be assigned to the same workflow as the requisition line items to be able to approve the line items.
Three components make up a workflow: 1) the
name of the workflow, 2) the
levels, and 3) the individual
approvers. First, however, users must be added and set up as Approvers in order to add them to the workflows.
Purchasing, and then click
2. After adding users as approvers, click the
Agency tab, and then click the
3. Type a
name for the Workflow (approximately 50 characters). (The workflow will be selected when a requisition line item is added.) Be sure the
Active check box is checked. Do not use special characters or symbols, including &,',“,<,and \.

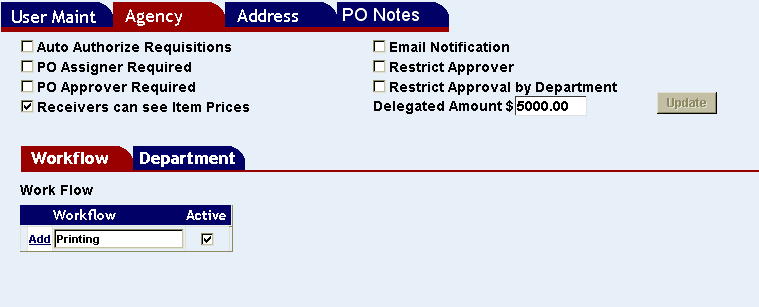

Figure 1 - New Workflow example
Select next to the Workflow. The
Levels section will appear. (The name of the workflow approval level corresponds to the name of the workflow.)
6. Type a name for the
Level (approximately 50 characters). Do not use special characters or symbols, including &,',“,<,and \.

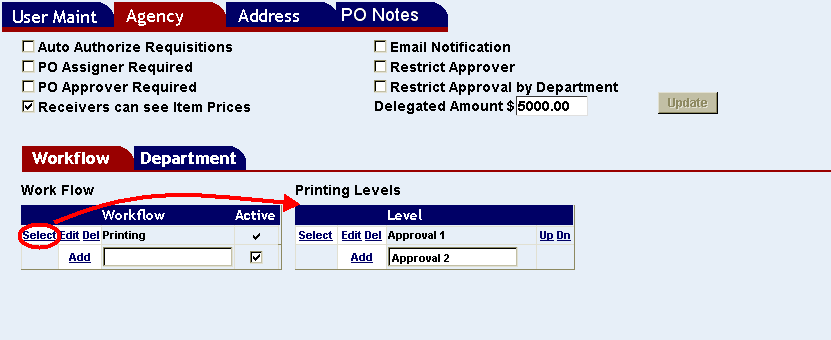

Figure 2 - New Workflow Approval Level example
Select next to the Approval Level. The
Approvers section will appear (labeled with whatever you named the workflow approval level). The approval levels are in hierarchical order. That is, a requisition must be approved by the first level before it can be approved by the second level.
9. Select the approver name(s) from the drop down menu and then click
Add. You can assign the same user(s) to different approval levels. You can also assign the same user(s) to different workflows.

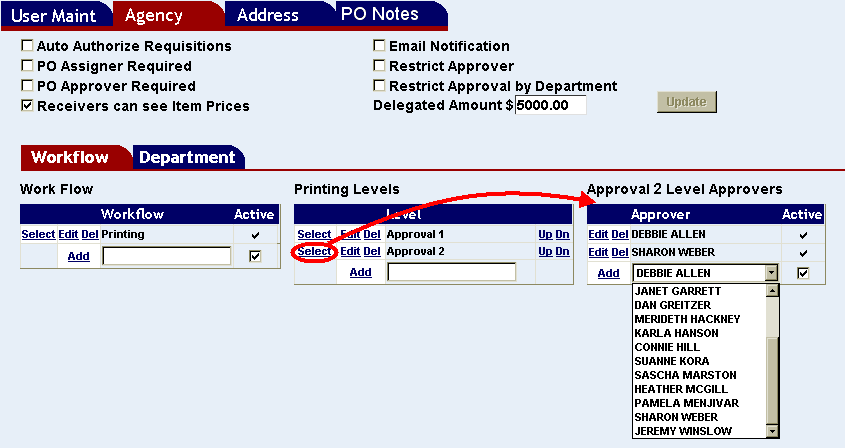

Figure 3 - Add approvers example
NOTE: Although the approvers appear in a list, they are a group of approvers – they are not a hierarchical list. You can create separate approval levels (which
are in hierarchical order), and then assign the approvers to each individual level. This creates a process whereby a requisition has to be approved by a person in one level before it can be approved by a person in the next level.
2. Click the
Agency tab, and then click the
3. To change the name of a workflow or workflow approval level, click
Edit next to the workflow or level.
4. Change the name, and then click
5. To delete a workflow, click
Del next the workflow. All associated levels will be deleted. However, once a workflow has been used (a requisition assigned to it), the workflow cannot be deleted and
Del will be disabled, even if all requisition items in the workflow have been processed.
6. To stop a workflow from being shown as an drop down option for Requisition items, select
Edit in the workflow grid on the
Agency tab, and then uncheck the
Active check box.
7. To change or remove approvers, click
Del next to an approver's name, and then click
8. To add a new approver, click
Add below the list of approvers, add the approver, and then click
Once approval levels have been created, individual approvers can be added or removed to workflows, or moved to different approval levels either on the
Agency screen, or more easily on the
Maint (User Maintenance) screen.
1. Click the
Maint tab, then click
Select next to an approver.
Edit next to the workflow you want to change for the

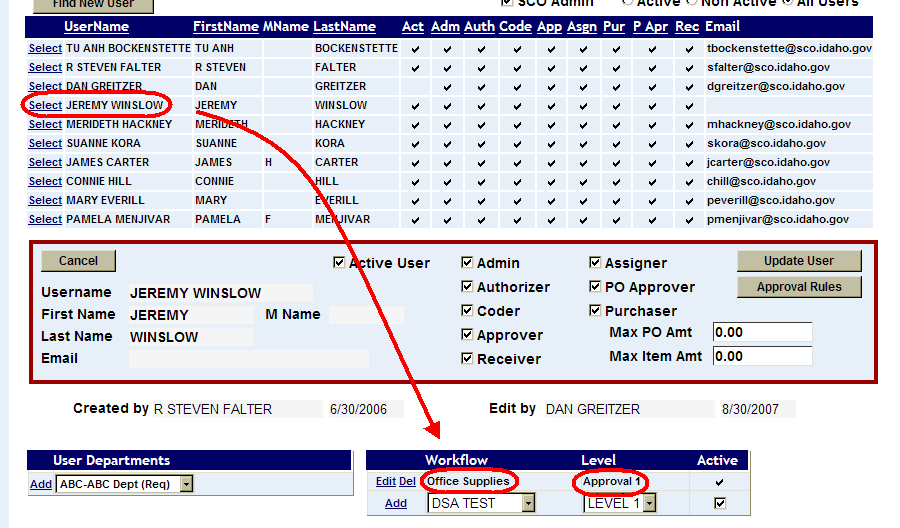

Figure 4 - Update an Approver example
3. Click the drop down menus for the
Workflow and/or the approval
Level to assign the approver to either a different workflow or to move them to a different approval level within a workflow.

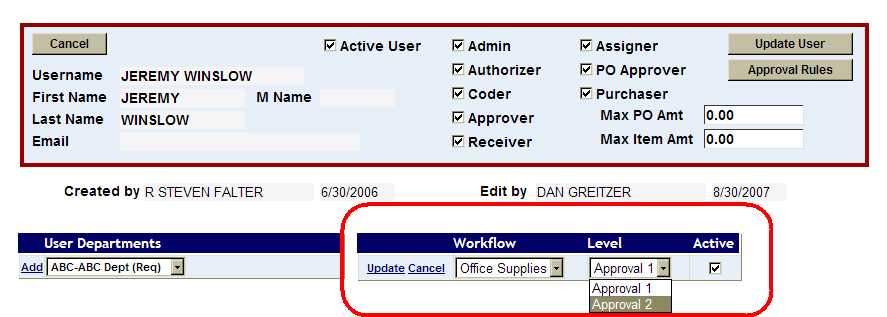

Figure 5 - Update the workflow assignment example
1. After finding and adding the new approver, the workflow drop down menus will become available on the User Maint screen for that user.
2. Click the drop down menus for the
Workflow and the approval
Level to assign the new approver to a workflow and an approval level.
Add next to the workflow.

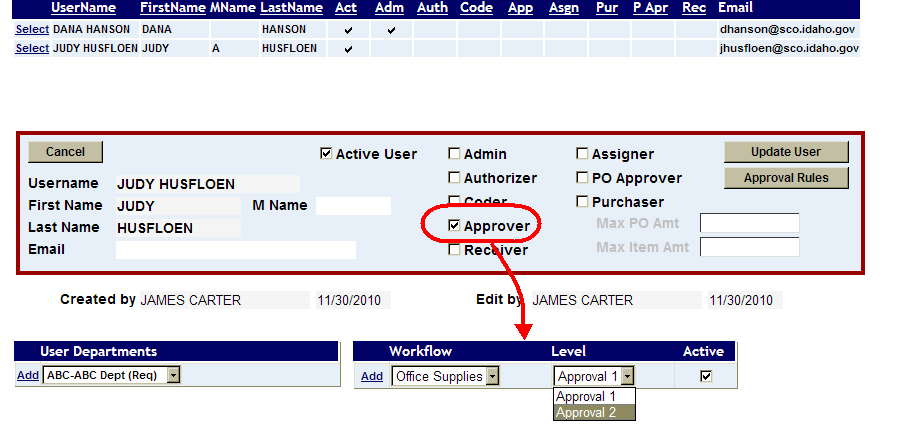

Figure 6 - Adding new approver to workflow example
Below are examples of requisition workflows, indicating workflows by bureau, office function, location, etc.

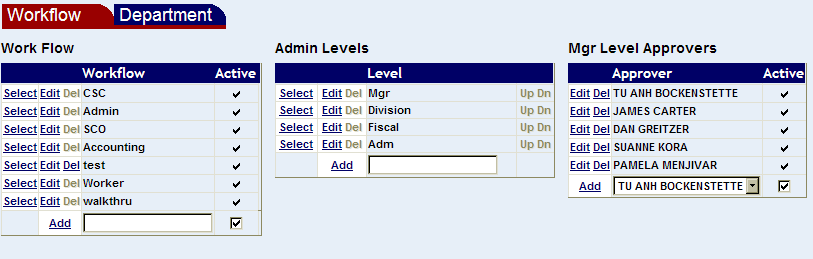

Figure 7 - Workflow example 1

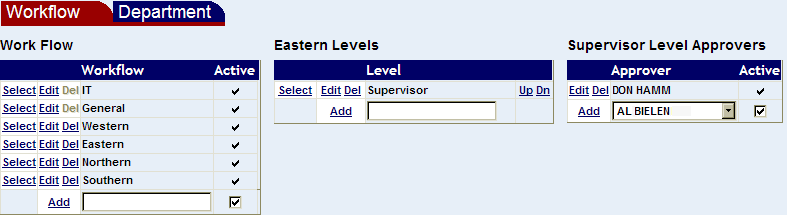

Figure 8 - Workflow example 2

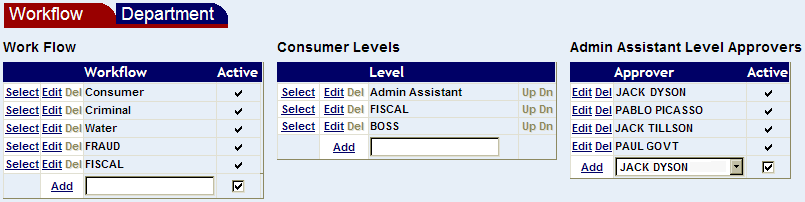

Figure 9 - Workflow example 3
